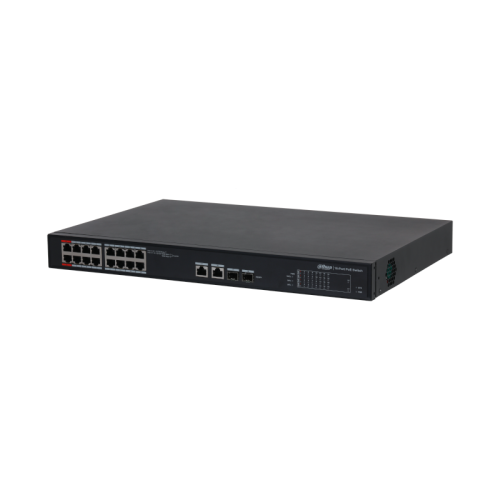

S4101-16ET2GF-240-C

    S4101-16ET2GF-240-C

    • Switch réseau DAHUA
    • 16 Ports RJ-45 10/100 Mbps PoE
    • 2 Ports RJ45 10/100/1000 Mbps Uplink (combo)
    • 2 Ports SFP 1000 Mbps Uplink (combo)(fibre)
    • Ports RJ45 1 & 2 Hi-PoE (90W)
    • PoE 2.0 jusqu'à 250m (10 Mbps)
    • Switch Manageable par Cloud
    • Switch Rackable
    • Puissance max : 240W

    227,70 €
    HT

    Hardware

    Included Power Adapter

    Yes

    PoE

    Yes

    Ethernet Port

    16

    Ethernet Port Speed

    10/100 Mbps

    Optical Port Uplink Speed

    1 Gbps

    Description of Function Slots

    Port 1–16: 16 × RJ–45 10/100 Mbps

    Port 17-18: 2 × 10M/100M/1000M Base-T (uplink)(combo)

    Port 17-18: 2 × 1000M SFP (uplink)(combo)

    Power Supply

    100–240 VAC, 50/60 Hz, 2 A

    Operating Temperature

    –10 °C to +55 °C (+14 °F to +131 °F)

    Operating Humidity

    5%–95% (RH), non-condensing

    Storage Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Storage Humidity

    5%–95% (RH), non-condensing

    Power Consumption

    Idling: ≤5 W
    Full: 240 W

    Performance

    Smart Managed Switch

    Yes

    MTBF

    371,069 h

    Switching Capacity

    7.2 Gbps

    Packet Forwarding Rate

    5.36 Mpps

    Packet Buffer Size

    4 Mbit

    MAC Table Size

    16K

    PoE

    PoE Protocol

    IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

    PoE Power

    Port 1–2 ≤90 W;
    Port 3–16 ≤30 W;
    Total ≤240 W

    PoE Power Consumption Management

    Yes

    PoE Pin Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8(V–)

    Long Distance PoE Transmission

    Yes

    General

    Statics Protection

    Air discharge: 8 kV
    Contact discharge: 6 kV

    Lighting Protection

    Common mode: 4 kV
    Differential mode: 2 kV

    Net Weight

    3.20 kg (7.05 lb)

    Gross Weight

    4.30 kg (9.48 lb)

    Product Dimensions

    440 mm × 300 mm × 44 mm
    (17.32"" × 11.81"" × 1.73"") (L × W × H)

    Packaging Dimensions

    528 mm × 412 mm × 112 mm
    (20.79"" × 16.22"" × 4.41"") (L × W × H)

    Certifications

    CE; FCC

    Transmission Performance:

    Switch power supply voltage 53V.

    CAT5E/CAT6. Max. DC resistance < 10Ω/100m

    Cable(m)

    Load Capacity(W)

    Bandwidth(Mbps)

    IEEE802.3bt 90W

    100

    71.3

    100

    150

    62

    10

    200

    51

    10

    250

    40

    10

    Hi-PoE 60W

    100

    53

    100

    150

    50

    10

    200

    47

    10

    250

    37

    10

    IEEE802.3at 30W

    100

    25.5

    100

    150

    25.5

    10

    200

    25.5

    10

    250

    25.5

    10

    Note: Data from this table was collected by Dahua test lab and is for reference only. The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.

    Détails du produit

    Fiche technique

    Marque
    DAHUA
    Nombre de ports PoE
    16 Ports PoE
    Alimentation PoE
    Oui
    Management
    Cloud Management
    Nombre de ports RJ45
    16 Ports RJ45
    Nombre de ports fibre
    2 Ports SFP
    Budget PoE
    240W

    Comparaison rapide

    Produit
    S4101-16ET2GF-240-C S4101-16ET2GF-240-C CS4218-16ET-240 CS4218-16ET-240 PFS3211-8GT-120 PFS3211-8GT-120
    Disponibilité
    Prix
    227,70 €
    219,00 €
    218,70 €
    Description
    • Switch réseau DAHUA
    • 16 Ports RJ-45 10/100 Mbps PoE
    • 2 Ports RJ45 10/100/1000 Mbps Uplink (combo)
    • 2 Ports SFP 1000 Mbps Uplink (combo)(fibre)
    • Ports RJ45 1 & 2 Hi-PoE (90W)
    • PoE 2.0 jusqu'à 250m (10 Mbps)
    • Switch Manageable par Cloud
    • Switch Rackable
    • Puissance max : 240W

    • Switch réseau DAHUA
    • 16 Ports RJ-45 10/100 Mbps PoE
    • 2 Ports RJ45 10/100/1000 Mbps Uplink (combo)
    • 2 Ports SFP 1000 Mbps Uplink (combo)(fibre)
    • Ports RJ45 1 & 2 Hi-PoE (90W)
    • Switch Manageable de niveau L2
    • Switch Rackable
    • Puissance max : 240W

    • Switch réseau industriel DAHUA
    • 8 Ports RJ-45 10/100/1000 Mbps PoE (Gigabit)
    • 2 Ports SFP 1000 Mbps Uplink (fibre)
    • 1 Port RJ45 10/100/1000 Mbps Uplink
    • Ports RJ45 1 & 2 Hi-PoE (90W)
    • PoE 2.0 jusqu'à 250m (10 Mbps)
    • Switch non Manageable
    • Switch Rail DIN
    • Puissance max : 120W

    Marque
    DAHUA DAHUA DAHUA
    Nombre de ports PoE
    16 Ports PoE 16 Ports PoE 8 Ports PoE
    Alimentation PoE
    Oui Oui Oui
    Management
    Cloud Management Manageable L2 Non Manageable
    Nombre de ports RJ45
    16 Ports RJ45 16 Ports RJ45 8 Ports RJ45
    Nombre de ports fibre
    2 Ports SFP 2 Ports SFP 2 Ports SFP
    Budget PoE
    240W 240W 120W
